RecVAE — Recurrent 3D-Conv VAE for fMRI

Open-source · github.com/YuZh98/VAE-fMRI-Alzheimer

A recurrent 3D-conv VAE for resting-state fMRI volumes, in the same family as Kim et al. (2021) but with a linear latent transition solved in closed form by ridge regression rather than learned by SGD. Ships with a synthetic data path so you can run it without ADNI access; every example fits on a laptop CPU.

1
2
3
4
5
6
git clone https://github.com/YuZh98/VAE-fMRI-Alzheimer
cd VAE-fMRI-Alzheimer
python -m venv .venv && source .venv/bin/activate
pip install -e ".[dev]"
pytest -v                                              # 36 tests, ~5-20s, CPU-only
python tutorials/15_train_end_to_end/train_tiny.py     # synthetic, ~3s

Tutorials

tutorials/ has 18 hands-on lessons covering tensor shapes, 3D-conv arithmetic, the reparameterization trick, recurrent rollouts, alternating optimization, reproducibility, testing DL code, and research extensions.

Architecture

A 3D-convolutional VAE with a latent recurrence:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
                    ┌──────────────┐
   x_t ─────────────► 3D-CNN encode├──┐
   (1,91,109,91)    └──────────────┘  │  (B, 100)
                                      ▼
                       ┌────────────────────────────┐
   h_{t-1} ───────────►│  hidden2mu, hidden2log_var │
   (B, 10)             └────────────────────────────┘
                                      │
                                      ▼      ε ~ N(0, I)   (reparam)
                                 mu_h, log_var_h ────────────┐
                                                              ▼
                                                      h_t = mu_h + σ_h ε   (B, 10)
                                                              │
                                       z_s (subject noise) ───┤
                                                              ▼
                                                      h_t + z_s  ─────────┐
                                                                          ▼
                                                              ┌─────────────────────┐
                                                              │  3D-CNN decode      │
                                                              └─────────────────────┘
                                                                          │
                                                                          ▼
                                                                  μ_t  (B,1,91,109,91)

   Linear temporal prior: g(h) = h F^T  →  used in loss term  ‖h_t − g(h_{t-1})‖²

Loss

Term	Form	How it’s optimized
`loss1`	Per-volume reconstruction MSE / σ_x²	SGD
`loss2`	‖h_t − g(h_{t-1})‖² / σ_h² (temporal)	SGD
`loss_z`	λ_z · ‖z‖₁ (subject-noise sparsity)	SGD
`loss_F`	ρ · ‖F‖_F² (reported, not back-propped)	Closed form (ridge)

Visuals

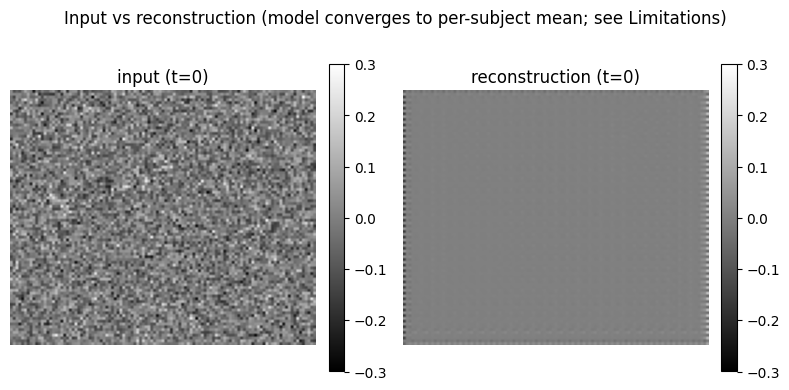

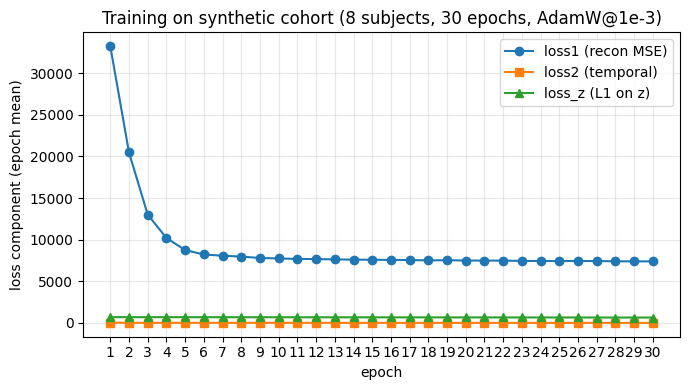

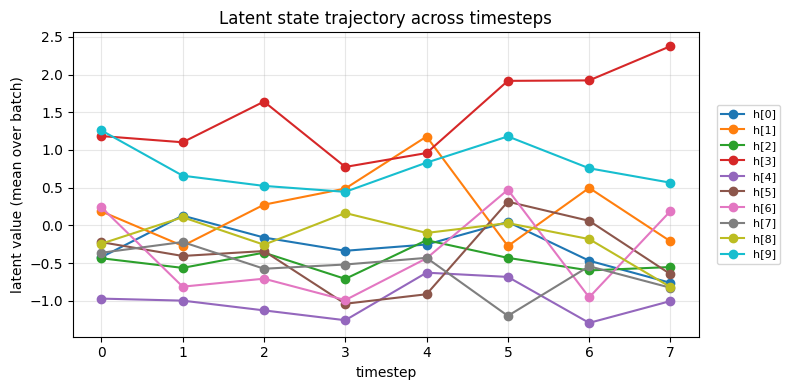

Loss curve	Reconstruction	Latent trajectory

Citation

If you use this code in research or teaching, please cite via the GitHub “Cite this repository” button (driven by CITATION.cff).
